Gi Portable Cabin

• Color
• White with blue/grey trims (customizable)

• Dimension (L*W*H)
• 20 x 8 x 8.6 ft (6.06 x 2.44 x 2.62 m)

• Door
• Other, Standard MS door with locking system

• Earthquake Intensity
• Zone IV & V compatible

• Floor Load
• 250 kg/m2

• Floor Material
• 18 mm marine ply with PVC flooring

• Height
• 8.6 ft (2.62 m)

• Length
• 20 ft (6.06 m)

• Material
• Other, GI (Galvanized Iron)

• Pillar
• 2 mm thick square tube (MS/GI)

• Product Type
• Portable Cabin

• Roof Dead Load
• 0.5 kN/m2

• Roof Live Load
• 1.5 kN/m2

• Roof Material
• Pre-coated GI sheet

• Thickness
• 1 mm GI sheet (outer), 50 mm wall panel

• Thickness Of Wall Panel
• 50 mm (PUF Insulated)

• Use
• Other, Office, Security Cabin, Accommodation, Site Office

• Wall
• Pre-coated GI sheet with insulation

• Wind Resistance
• Up to 180 km/h

• Window
• Other, Yes, sliding aluminum windows

• Window Style
• Other, Sliding

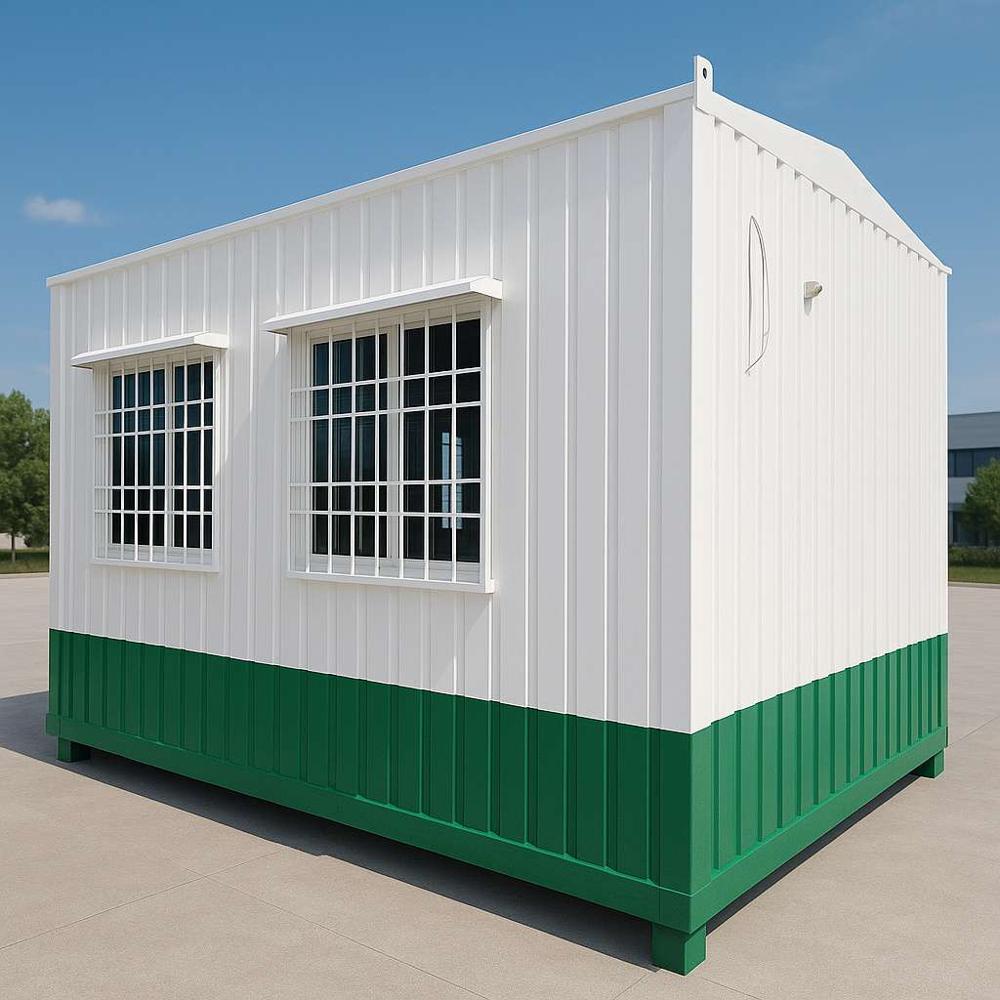

• Color
• As per requirement (Blue/White standard)

• Dimension (L*W*H)
• 20 x 8 x 9 ft (6.09 x 2.43 x 2.74 m)

• Door
• Other, 1 GI Door with lock

• Earthquake Intensity
• Up to 8 grade

• Floor Load
• 200 kg/m2

• Floor Material
• 18 mm cement fiber board with PVC mat

• Height
• 9 ft (approx. 2.74 m)

• Length
• 20 ft (approx. 6.09 m)

• Material
• Other, Galvanized Steel (GI)

• Pillar
• Square steel tube

• Product Type
• GI Portable Cabin

• Roof Dead Load
• 40 kg/m2

• Roof Live Load
• 70 kg/m2

• Roof Material
• Corrugated GI sheet

• Thickness
• 0.4-0.5 mm (outer sheet)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Site Cabin, Guard Cabin

• Wall
• GI Sandwich Panel

• Wind Resistance
• 150 km/h

• Window
• Other, 2 sliding aluminium windows

• Window Style
• Other, Sliding

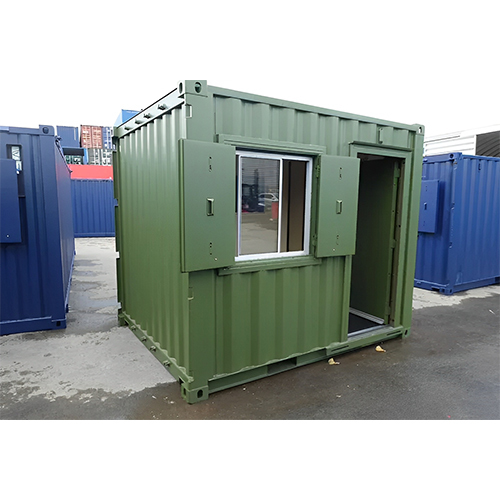

• Color
• Standard White/Blue (Customizable)

• Dimension (L*W*H)
• 20 ft x 8 ft x 10 ft

• Door
• Other, Flush Door, 1 Unit

• Earthquake Intensity
• Up to Zone IV

• Floor Load
• 250 kg/m2

• Floor Material
• 18 mm Cement Fiber Board with Vinyl Sheet Finish

• Height
• 10 feet

• Length
• 20 feet

• Material
• Other, Galvanized Iron (GI), Mild Steel Structure

• Pillar
• Mild Steel (MS) Box Section

• Product Type
• GI Portable Cabin

• Roof Dead Load
• 30 kg/m2

• Roof Live Load
• 75 kg/m2

• Roof Material
• Corrugated GI Sheet with Insulation

• Thickness
• 1 mm (External GI Sheet)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Guard Room, Site Cabin

• Wall
• Insulated GI Sandwich Panels

• Wind Resistance
• Up to 150 km/h

• Window
• Other, 2 units, Sliding Aluminum Windows

• Window Style
• Other, Sliding
